Product Overview

The 3051S DP Differential Pressure Transmitter is used to measure the level, density, pressure/differential pressure, and flow rate of liquids, gases, or vapors, and then convert these measurements into a 4~20mADC HART current signal for output. The 3051S can also communicate with a T375 handheld terminal or an M100 remote controller to perform parameter setting, process monitoring, and other operations.

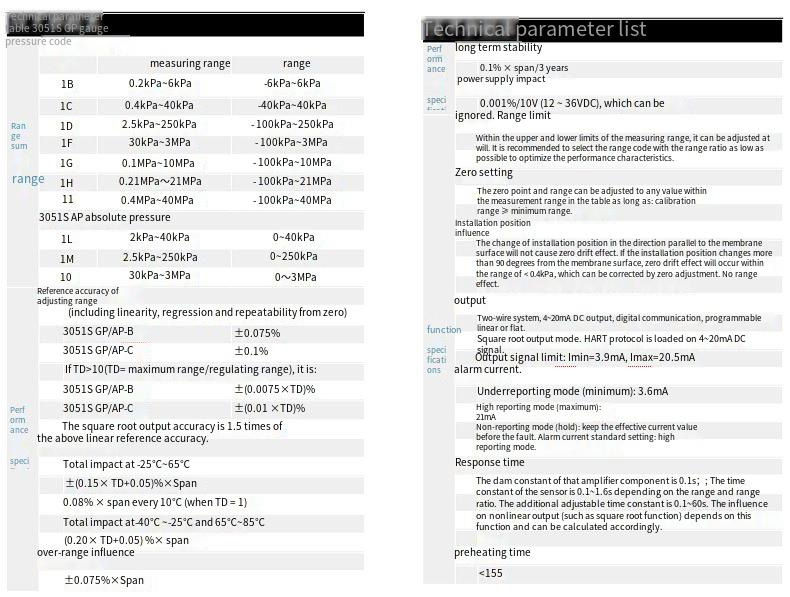

Standard Specifications

Calibrate the range based on the standard zero point, with a 316L stainless steel diaphragm and silicone oil as the filling fluid.

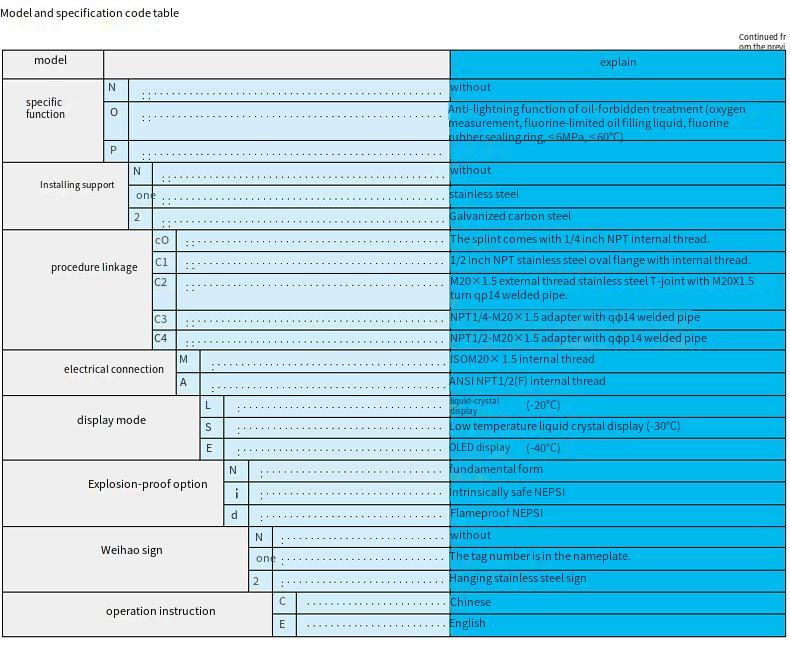

Example of selection:

Example: 3051S GP-B1CANNP1C0LN1C

[3051S GP]: Pressure transmitter

[B] Basic error ± 0.075%

[1C]: Sensor range is 0-2kPa~40kPa

[A] The liquid receiving part is made of stainless steel 316L membrane, and the filling liquid is silicone oil

[N] : No relief valve

[N] The liquid receiving sealing ring is made of nitrile rubber (NBR)

[P] Equipped with lightning protection function

[1] Stainless steel installation bracket

[C0]: The clamp comes with 1/4 inch NPT internal thread

[M] The electrical interface is M20 * 1.5 internal thread

[L] LCD display

[N] Basic type (non explosion proof transmitter)

[1] The tag number is marked on the nameplate

[C] Chinese User Manual

Note: If a certain code is a non-standard item with special requirements, the code can be represented by X or Y, and corresponding explanations for X or Y should be provided.
