Product Overview

The 3051S TG/TA pressure/absolute pressure transmitter is used to measure the liquid level, density, pressure, and flow rate of liquids, gases, or vapors, and then convert it into a 4-20mADC HART current signal output. The 3051S can also communicate with the T375 handheld terminal or remote control for parameter setting, process monitoring, etc.

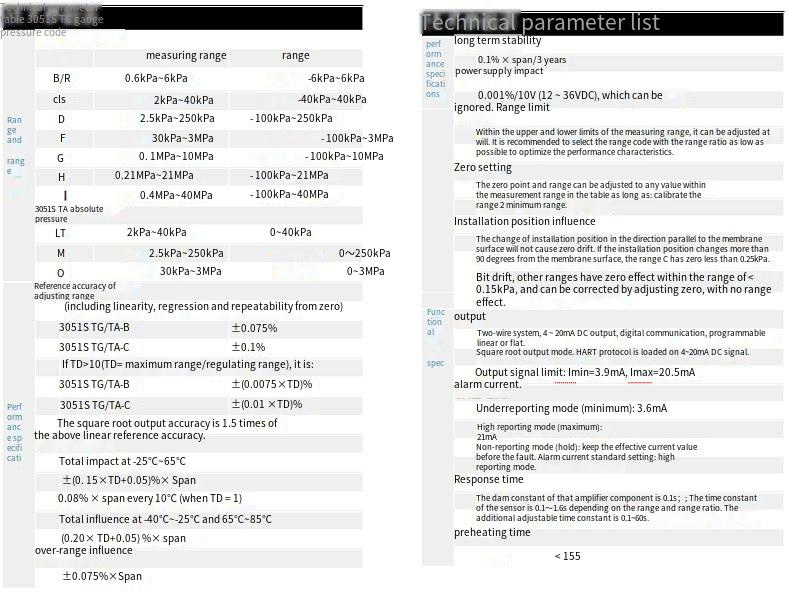

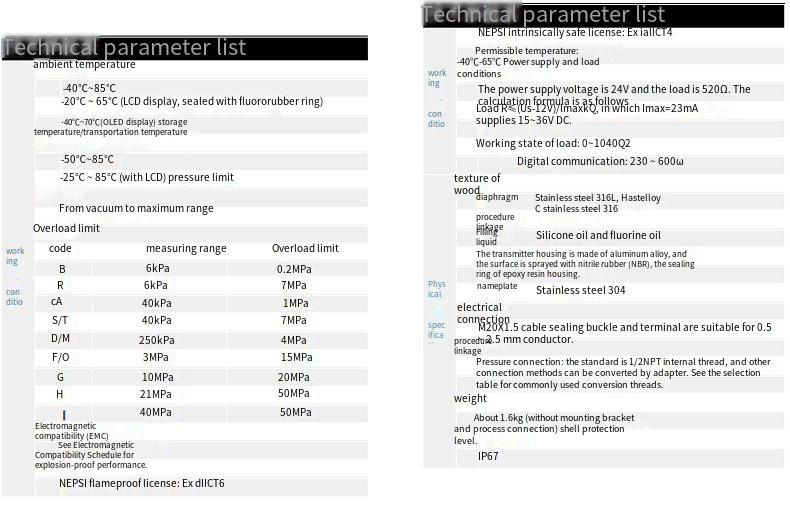

Standard Specifications

Calibrate the range based on the standard zero point, use stainless steel 316L diaphragm, and fill with silicone oil.

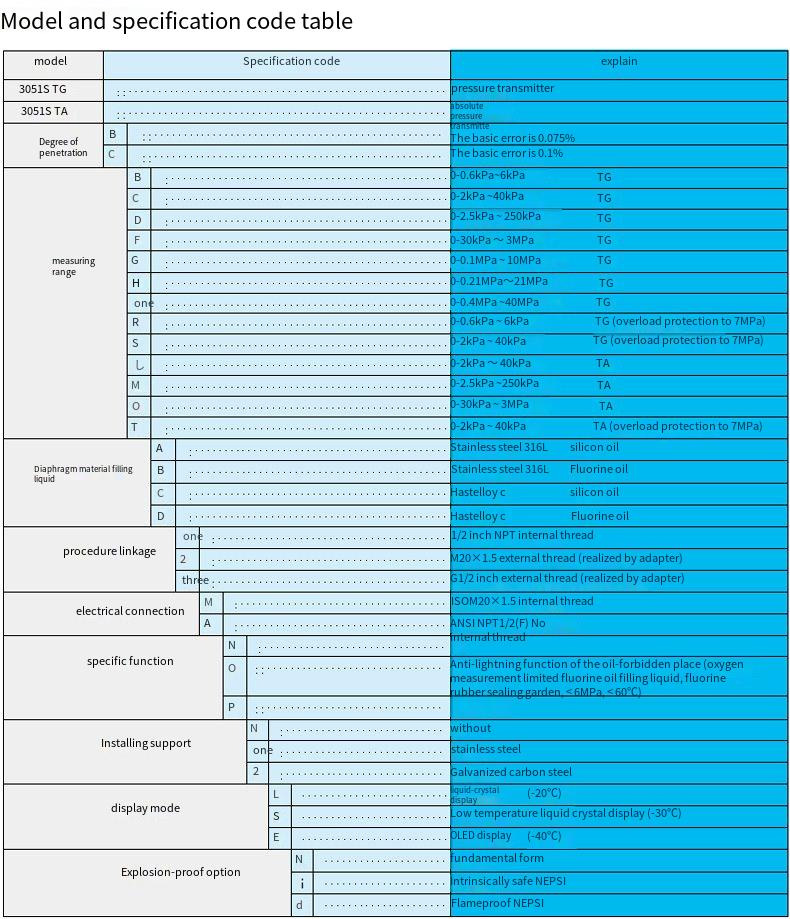

Example of selection:

Example: 3051S TG-BCA1MPN1NNNCN

[3051S TG]: Pressure transmitter

[B] Basic error ± 0.075%

[C] The sensor range is 0-2kPa~40kPa

[A] The liquid receiving part is made of stainless steel 316L membrane, and the filling liquid is silicone oil

[1] Process connection interface with 1/2-inch NPT internal thread

[M] The electrical interface is M20 * 1.5 internal thread

[P] Equipped with lightning protection function

[N] : No installation bracket

[1] LCD display

[N] Basic type (non explosion proof transmitter)

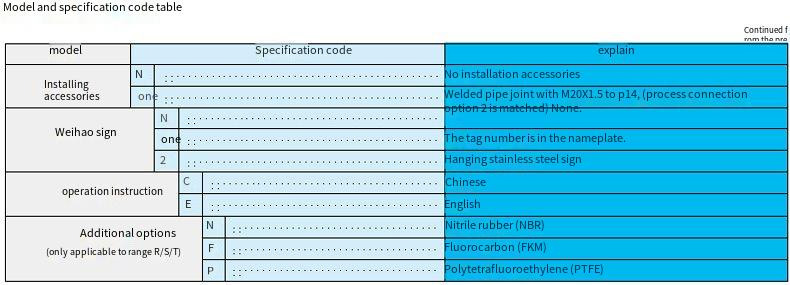

[N] : No installation accessories

[1] The tag number is marked on the nameplate

[C] Chinese User Manual

[N] The sealing material for liquid contact is nitrile rubber (NBR)

Note 1: 3051S TG corresponds to the selected gauge pressure range code, while 3051S TA corresponds to the selected absolute pressure range code;

Note 2: The additional options are only applicable to range R, range S, and range T transmitters. The appropriate sealing ring material needs to be selected according to the measuring medium, and the standard specification is NBR.

Note 3: If a certain code is a non-standard item with special requirements, the code can be represented by X or Y and corresponding explanations for X or Y should be provided.
